Clamfix is the High Tech screw with cost down effectiveness Due to the adhesion with Insert strongly, Clamfix is the Anti-looseness screw that it doesn't need other process

Characteristic of Clamfix Screw

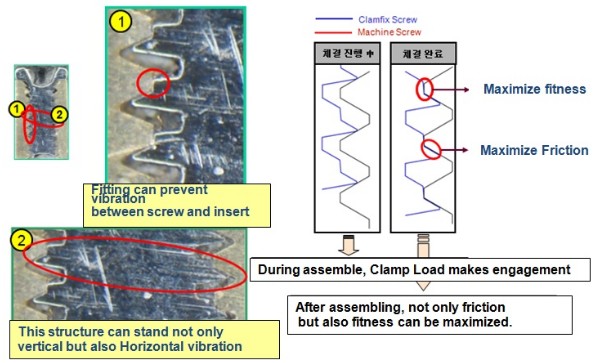

Clamfix is the superior of anti-looseness against vibration with maximization the contact surface both female thread and male thread although there is no additional anti-looseness process

Benefits of Clamfix

After processing the flat area of thread, Improves the clamping load with increasing the contact surface when it makes clamping.

Superior the anti-looseness about vibration due to adhesion both female thread and male thread.

Superior the cost down effectiveness product because it doesn't need the anti looseness process that using before.

Can use immediately because it needs not to change the structure of female thread.

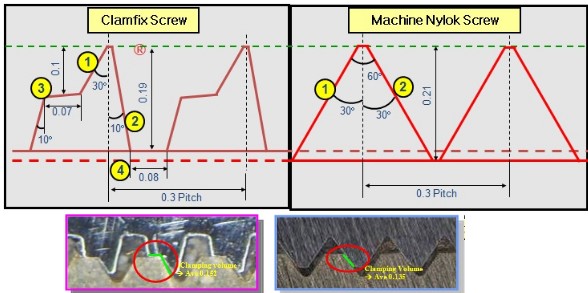

In case of Clamfix Screw, it improves Clamping volume Ave
12.6% more than machine screw.
In case of Clamfix Screw, it improves Clamping volume Ave
12.6% more than machine screw.

Expectation of cost down

According to remove the Nylok patch, it is possible to cost down up to 30% of screw original cost.
